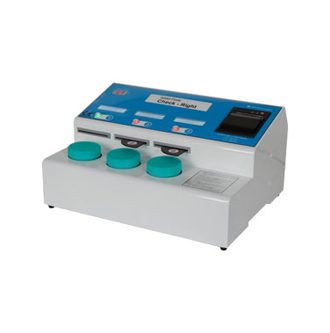

Check Right

「 Digital Room Temperature Exposure System 」

CHECK RIGHT SERIES - Can or Syringe Type (selectable)

Product Features

Unable to pick up before exposure to room temperature (lock function)
Reduced room temperature exposure, which perviously took more than 2 hours, to within 1 hour using a fan
Automatic label output when room temperature exposure is complete (Start time / End time / Pick up time)
First-in and first-out function can be selected after exposing solder paste to room temperature
Room temperature exposure check method: Temperature and time settings are available

Purpose of the product

Measure the temperature, record the time, and determine availability when inserting the refrigerated solder paste into the holder
Utilize history management before warehousing or using the solder paste

■ Label Output Status

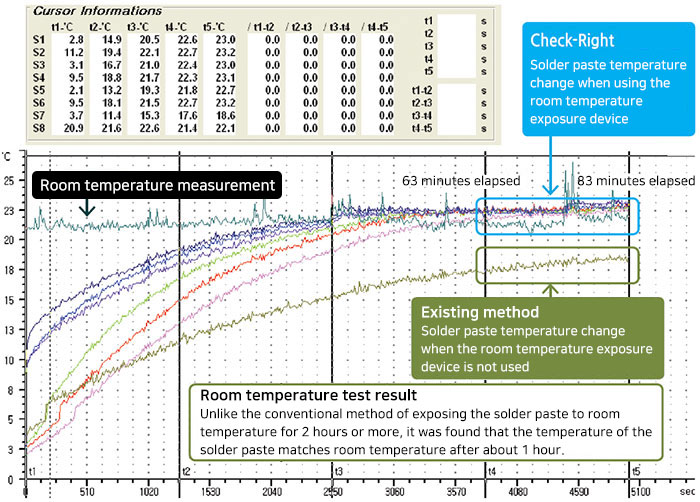

■ Room Temperature Exposure Test of Solder Paste

■ Product Specifications

Product name	Digital room temperature exposure system (CHECK RIGHT)
Model	SCR-3030CL	SCR-3050CL / 3050SL	SCR-3100CL / 3100SL
	Solder Paste Can Type(CL Type) / Syringe Type(SL Type)
Size(mm)	400 X 305 X 205	500 X 340 X 235	500 X 490 X 275
Quantity of products exposed to room temperature	3	5	10
Room temperature exposure method	Lock function activated during the room temperature exposure process (released when the process is complete)
Room temperature condition time setting	Option specifications - 4 hr, 6 hr, 8 hr, 12 hr, and 24 hr; after setting the desired time, the NG time for room temperature storage is displayed on the touch LCD.
Indoor temperature sensor	0 ~ 99℃ (measurement tolerance : ±2.0 at 25℃)
Infrared temperature sensor	0 ~ 60℃ (measurement tolerance : ±0.5 at 25℃)
Product composition	Main body, power cable, and label paper (consumable)
Display contents	Touch LCD - Solder paste container surface temperature, time, and room temperature / 2 Color LED - Room temperature exposure process status
Input power	AC 220V / 50 ~ 60Hz
Case	Material, White Color
