Profiler

「 Wired and wireless temperature recording device that provides accurate data 」

6ch measurement available
Various models
Decent design and improved mobility with thin and light structure
Increased reliability of stable measurement records at high temperatures (correspond to Pb-free)
Uses USB cables for charging and data transfer
User can designate color for each channel
Transmits measurement data every 0.1 sec
High reliability and low price

8ch measurement available

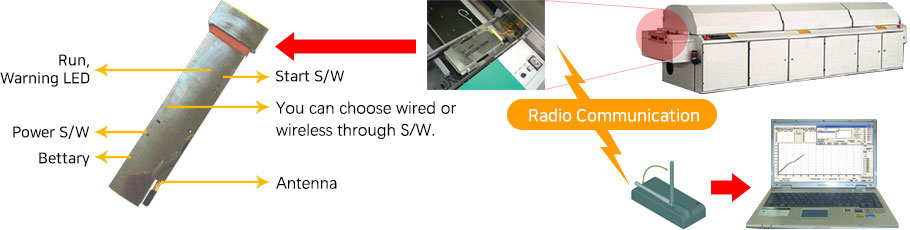

Enables real-time data wireless transmission, verification, and wired transmission
Enables stable data recording at high temperatures (correspond to Pb-free)
Enables 8ch measurement from 0 ℃ to 500 ℃
Enables wireless communication up to 15 m
Uses USB charging
Easy to operate and convenient to move

6ch measurement available
RTPS (real-time temperature measurement system) alternative in reflow M/C can be applied.
Temperature measurement without PCBA, immediate NG assessment, and measurement without existing thermocouple (T/C wire) is possible.
Reduced temperature measurement time by strengthening the simulation function (It takes 1/10 of the time required for existing products.)

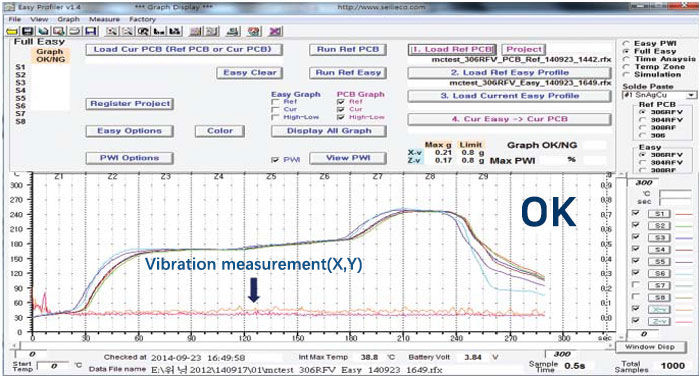

Vibration measurement available: Checks the vibration of the reflow conveyor and prevents dropping and damage of parts

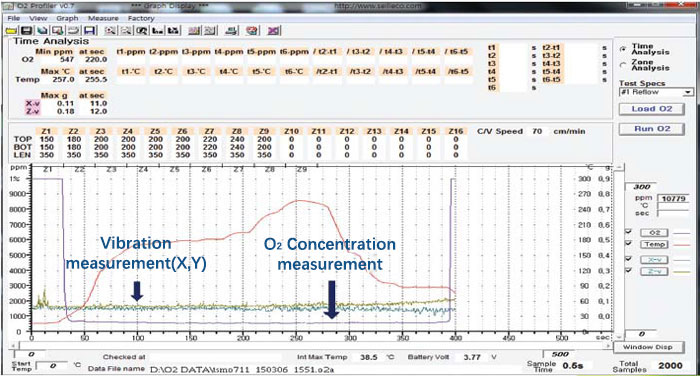

Enables real-time measurement of oxygen concentration in N2 reflow M/C.
Temperature and C/V vibration can be measured and displayed on the screen at the same time.
Ultra-precise measurement of oxygen concentration at 10 - 10,000 ppm available.

Customizing Product

Type	SMP-306 (SMT only)
Dimension (Memory Unit)	239.6(L)×51.8(W)×18(H)/mm
Main body weight (Memory Unit)	265g
Channel	6-ch(K-Type)
Battery	3.6V Recharge
Sampling Time	0.1s, 0.2s, 0.5s, 1s, 5s, 10s
Total Samples	500, 1000, 2000, 4000, 8000 sec
Precision	± 1℃ at 200℃
Internal guaranteed temperature	max 70℃ at 5min
Measurement range	0 ~ 500℃
PC software	Microsoft Window10 & Low version

Type	SMP-308
Dimension (Memory Unit)	263(L)×68.2(W)×18(H)/mm
Main body weight (Memory Unit)	331g
Channel	8-ch(K-Type)
Battery	3.6V Recharge
Sampling Time	0.1s, 0.2s, 0.5s, 1s, 5s, 10s
Total Samples	500, 1000, 2000, 4000, 8000 sec
Precision	± 1℃ at 200℃
Internal guaranteed temperature	max 70℃ at 5min
Measurement range	0 ~ 500℃
PC software	Microsoft Window10 & Low version

Model		SEP-306RFV
Measurement range	Temp	Temp : 0.1 ~ 380℃
Measurement range	Vibration	X/ Z-v : 0~0.9g
Measurement content	Temp	6-ch(K type Sheath)
Measurement content	Vibration	X-Z axis
Measurement interval		0.5s, 1s, 2s 5s, 10s
Measurement frequency		500, 1000, 2000, 4000, 6000, 8000
Data transmission method		RF Real time
Precision		±1℃ at 200℃
Internal protection temperature		max 70℃ at 5min
Rechargeable Battery		3.7V 1100mAh

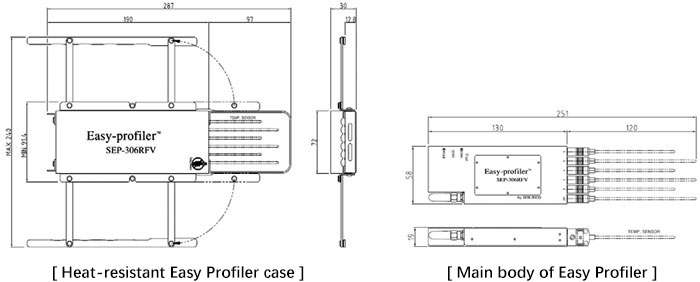

Dimension	Memory unit	130.3 x 57.8 x 19
L x W x H	Protection case	287 x 75.8 x 30
(mm)	Expension width	91.4 ~ 240
Total weight		237g + 575g
PC operating environment		Microsoft Window10 & Low version

Model		SOP-501KT	SOP-510KT
Measurement range and content	OXYGEN (O₂) Sensor	10 ~ 1,000ppm(opt.)	100 ~ 10,000ppm(std.)
	Vibration (X - Z axis)	X/ Z-v : 0~0.9g
	Temp	1~380℃ (1-ch K type Sheath)
Measurement frequency (10 times)		500, 1000, 2000, 4000, 6000, 8000
Measurement interval		0.5s, 1s, 2s 5s, 10s
Data transmission method		RF Real time
Rechargeable Battery		3.7V 2950mAh Polymer
Internal protection temperature		max 70℃ at 5min

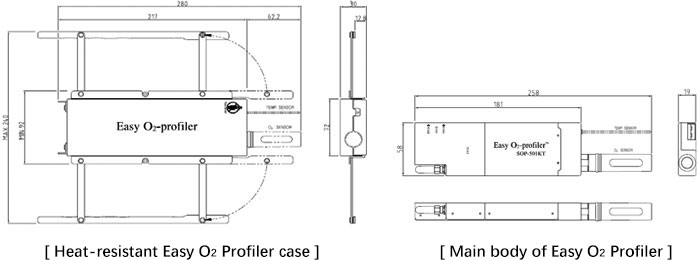

Dimension (L x W x H)	Memory unit	257mm x 57 8mm x 19mm
	Protection case	278mm x 75.8mm x 30mm
	Expension width	91.4mm ~ 240mm
Weight		350g(main body)) + 577g(including heat-resistant case)
PC operating environment		Microsoft Window10 & Low version
